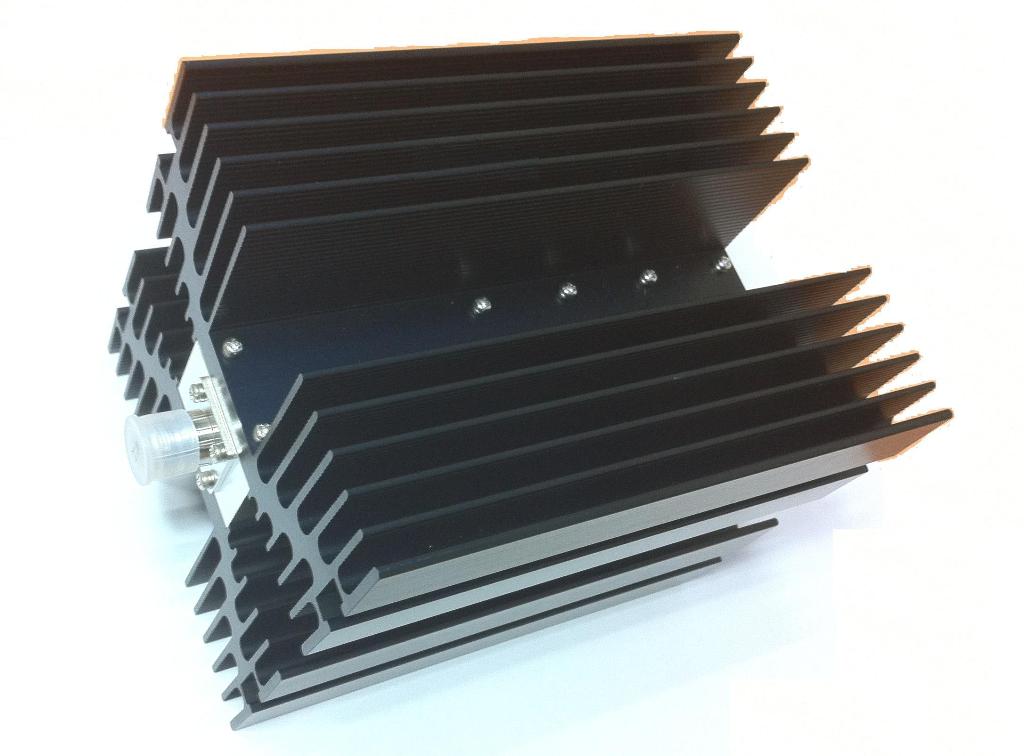

RF Terminations - Dummy Loads Our RF terminations / Dummy Loads are employed in very different fields of RF and microwave technology and excellently meet the requirements of : · Design and engineering · Test and measurement RF Terminations / Dummy Loads are mainly used to terminate transmission lines in their characteristic impedance to avoid RF wave reflections. Reflections also cause distortion of information. Features · Broadband operationability · Low and medium power types · High repeatability Ref. Products ; -. 250Watt N type Termination rf microwave coax - Square heat sink type -. 100Watt N type Termination rf microwave coax - Square heat sink type -. 50Watt N type Termination rf microwave - Round Type -. 50Watt 7/16 DIN type Termination rf microwave - Round Type -. 20Watt N type Termination rf microwave coax - Square heat sink type -. 20Watt N type Termination rf microwave - Round Type

MCX Plug

MCX Plug

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

RT2M001W01

DC~3

0.5

1.20

Au

MCX Jack

MCX Jack

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

RT2F001W01

DC~3

0.5

1.20

Au

SMB Plug

SMB Plug

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

RT4M001W01

DC~3

0.5

1.20

Au

SMA Plug

SMA Plug

P/N

Frequancy
(GHz)

Power
(W)

V.S.W.R.
(Max.)

Plate

Remark

RT3M001W01	DC~3	1	1.10	Au/Passivity
RT3M001W21	DC~18	0.5	1.20	Au/Passivity
RT3M001W11	DC~3	1	1.10	Ni

PLB Plug

PLB Plug

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

TL2M001W01

DC~3

1

1.15

Au/Ni

TNC Plug

TNC Plug

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

RT7M002W01

DC~3

2

1.10

Ni

N Plug

N Plug

P/N

Frequancy(GHz)

Power(W)

V.S.W.R.(Max.)

Plate

Remark

RT8M002W01

DC~3

2

1.10

Ni

7/16 Plug

7/16 Plug

P/N

Frequancy
(GHz)

Power
(W)

V.S.W.R.
(Max.)

Plate

Remark

RT6M002W01

DC~3

2

1.1[1.2(at 6GHz)]

Ni
