rf microwave coaxial connectors rf microwave coaxial connectors Home > Product > RF coaxial connectors > MMCX Connectors RF
RF Cable Connectors B/F & PCB Connectors

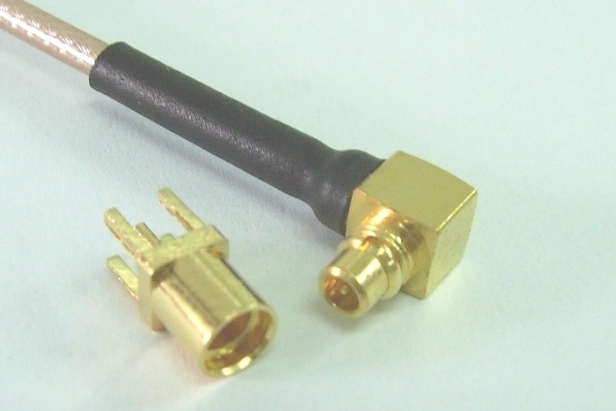

MMCX Connectors RF (micro-Miniature coaxial) are designed for frequency ranges from DC up to 6 GHz and for applications where smallest dimensions have to be achieved. The reliable "snap-on" coupling mechanism ensures that the electrical parameters are consistently reproduced.
MMCX connector rf series provide a low RF leakage due to its non-slotted outer contact.

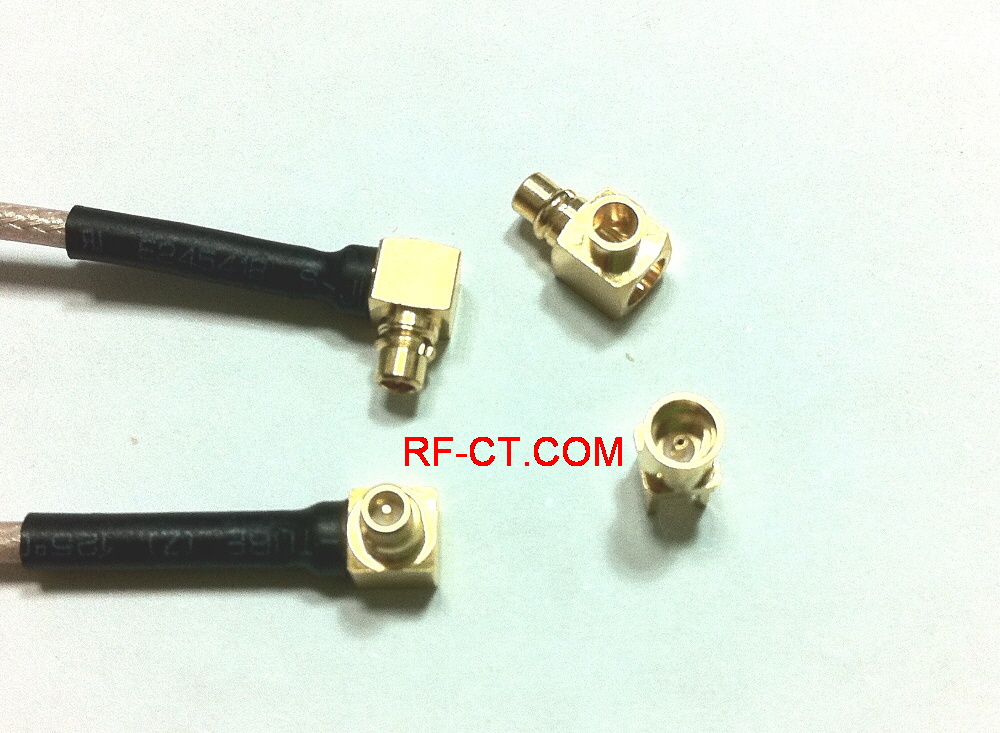

MMCX  Connectors RF - micro-miniature coaxial connectors

MMCX  Connectors RF - micro-miniature coaxial type

rf microwave coaxial connector's dimension

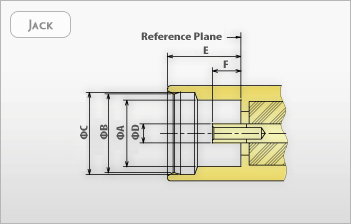

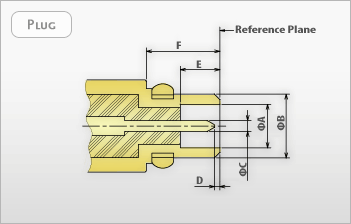

MMCX  Connectors rf coaxial -  plug interface MMCX  Connectors rf coaxial -  Jack interface
  Min.(mm) Max.(mm)

A 1.58 1.62
B - 2.40
C 0.38 0.42
D 0.00 0.25
E 1.45 -
F 2.70 -
G - 3.15

  Min.(mm) Max.(mm)

A 2.41 -
B 2.88 2.90
C 3.00 3.04
D 0.68 0.72
E 2.60 -
F 0.90 1.20
- - -

rf microwave coaxial connector specification rf microwave coaxial connector specification
Material Electrical
Requirements Specifications

Body Brass Au Plated
C-Ring Beryllium Copper Au Plated
Center Contacts Brass or
Beryllium Copper
Au Plated
Insulator PTFE Teflon

Requirements Specifications

Normal
Impedance
50
VSWR Straight DC~6
Max. 1.30
Right Angle
DC~3 Max. 1.30
Insertion Loss 0.07× f : Frequency()
Insulation
Resistance
DC 500V 3,000 Min.
Contact
Resistance
Inner Conductor : 5.0m Max.
Outer Conductor : 2.5m Max.

Mechanical Environmental
Requirements Specifications

Outer Force Engage : 1.54Kgf Max.,
Disengage : 0.64~1.54Kgf
Center Force Engage : 0.9Kgf Max.,
Disengage : 0.03Kgf Min.
Connector
Durability
500 Cycles MIL-C-39012

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)
MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)
MIL-STD-202, Method 103B,
Test Condition B
