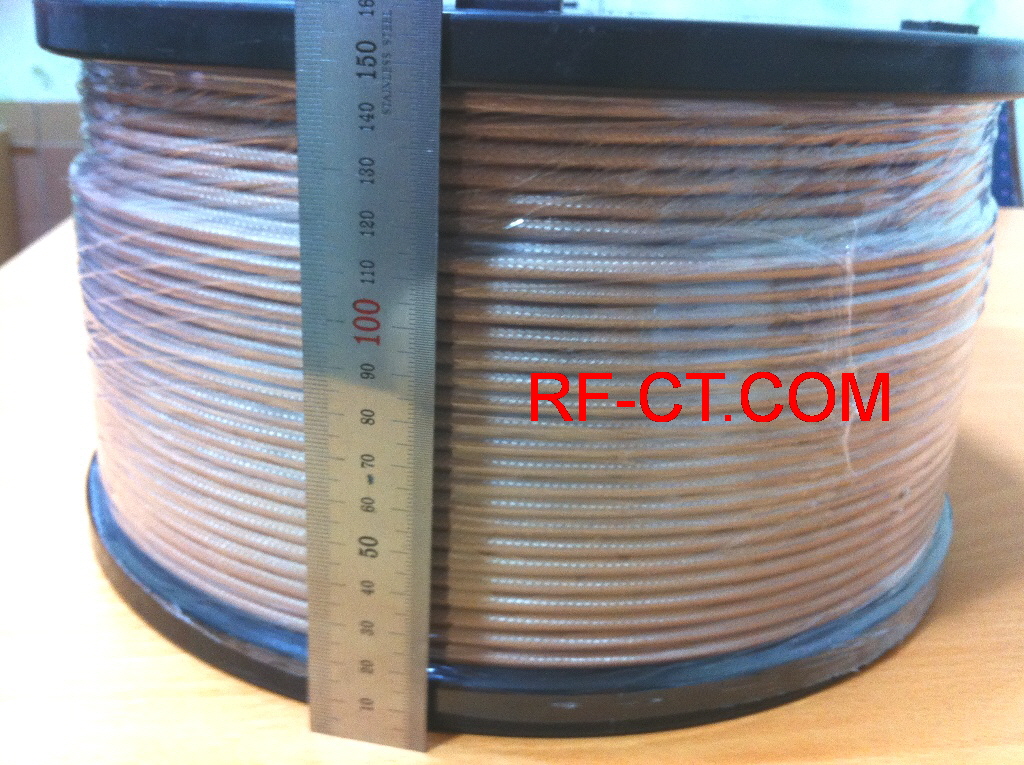

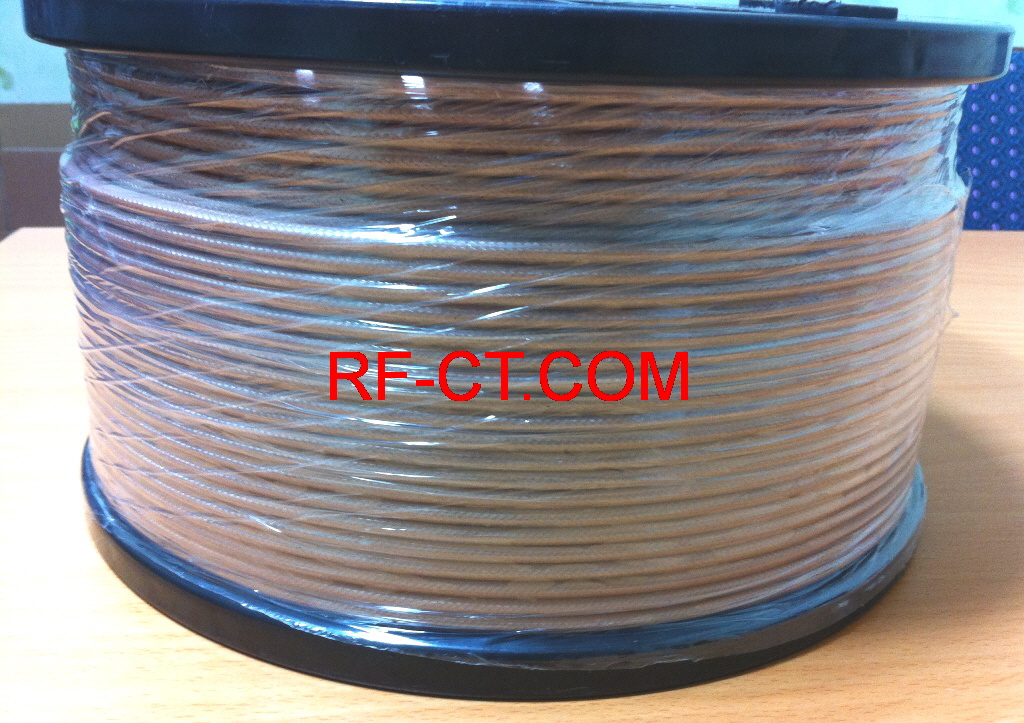

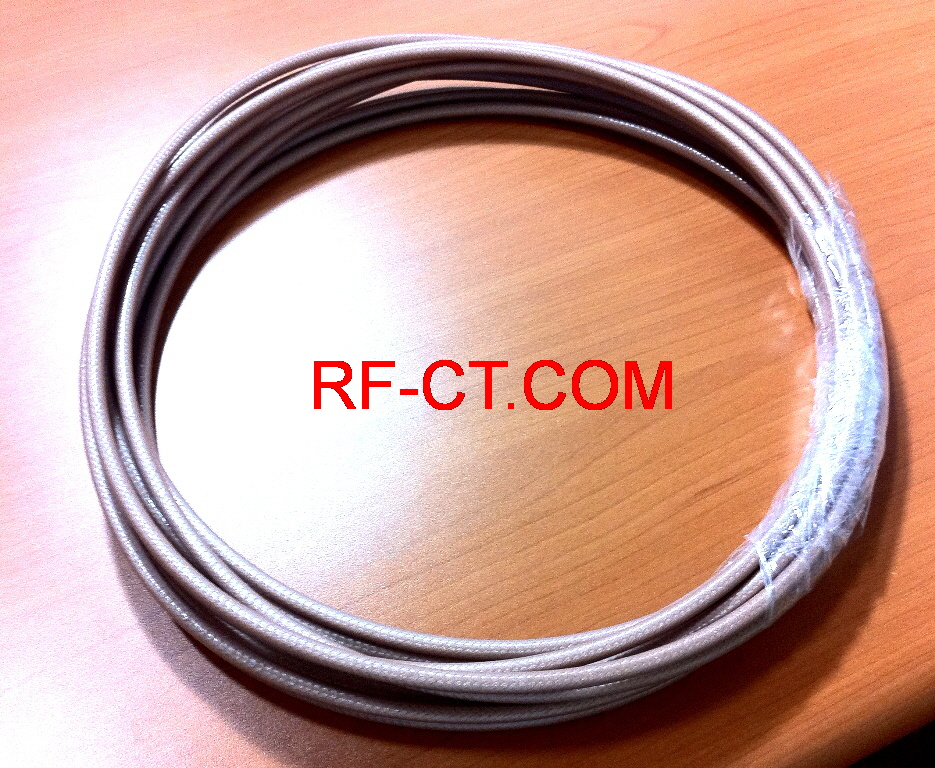

RG 142 cable?
RG142 coaxial
cable is a kind of 50 ohm cable.
Its outer diameter is
4.95mm and Insulator is PTFE.
The Frequency range is
upto 12.4GHz, and mainly
used in test cables and RF Radio
systems. The inner conductor
is solid type, shield
is double and it has

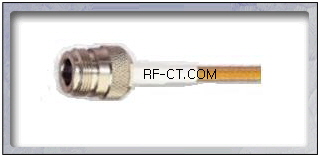

good flexibility. Mating
connectors are usually SMA,
TNC, N type and BNC connectors.
Originally it was desinged
for Military spec. and its number
is Mil-C-17/60-RG142.
