RF Coaxial Attenuators Home > Product > Passive components > RF Attenuators
RF Coaxial Attenuators SMA Type RF Attenuators N typeRF Attenuators DIN 7/16 type

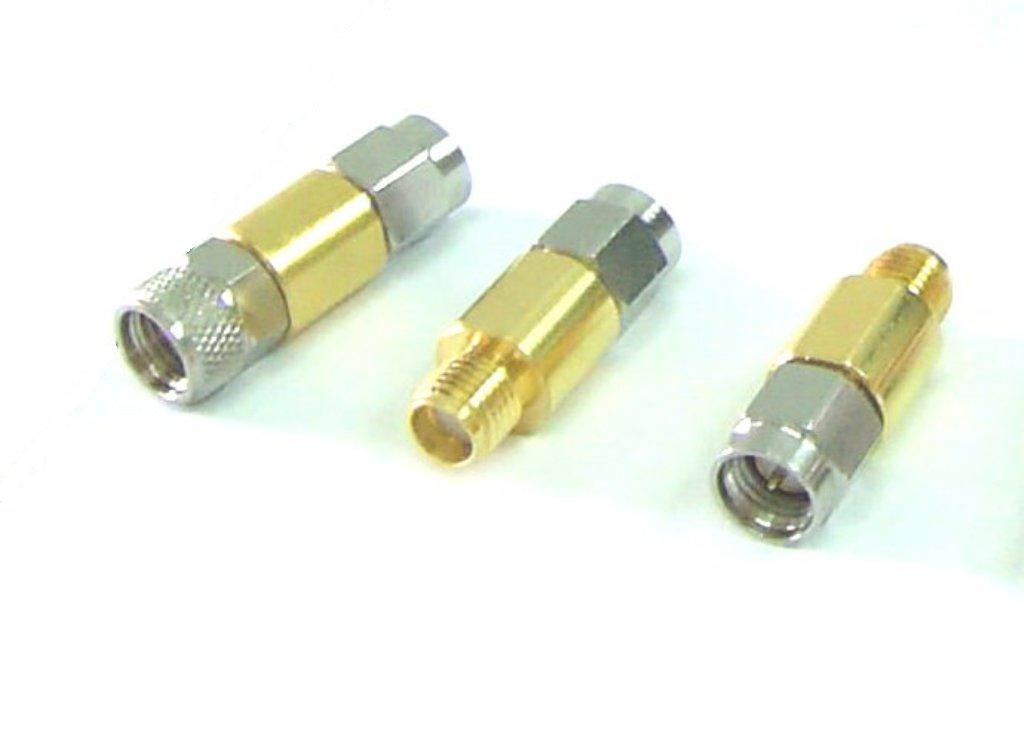

Our SMA RF Attenuators are designed for a wide variety of RF and microwave applications and to meet excellently the requirements of :
· design and engineering
· test and measurement
· built-in items for systems
Fixed RF attenuators are mainly used to reduce the power level of RF signals by a certain amount.
The output signal is reduced with respect to the input.

Ref. Products ;
-. Attenuator SMA MW RF coax		 RF attenuator SMA type
SMA(Subminiature Version A) RF Coaxial Connectors SMA(Subminiature version A) Coaxial RF Connectors
P/N Frequency(GHz) Power(W) Attenuation(dB) V.S.W.R.(Max.) Remark

RE3A101101 DC~3 1 1.0±0.3 1.20
RE3A102101 DC~3 1 2.0±0.3 1.20
RE3A103101 DC~3 1 3.0±0.3 1.20
RE3A104101 DC~3 1 4.0±0.3 1.20
RE3A105101 DC~3 1 5.0±0.4 1.20
RE3A106101 DC~3 1 6.0±0.5 1.20
RE3A107101 DC~3 1 7.0±0.5 1.20
RE3A108101 DC~3 1 8.0±0.5 1.20
RE3A109101 DC~3 1 9.0±0.5 1.20
RE3A110101 DC~3 1 10±0.5 1.20
RE3A120101 DC~3 1 20±1.0 1.20
RE3A130101 DC~2.5 1 30±1.5 1.20
RE3A110201 DC~2.5 2 10±0.5 1.20
RE3A120201 DC~2.5 2 20±1.0 1.20
RE3A130201 DC~2.5 2 30±1.0 1.20
