7/16 DIN type Connectors RF Coaxial Home > Product > RF coaxial connectors > 7/16 Connectors RF DIN type
Semi-rigid RF Coaxial Cable Connector Panel and Bulkhead RF Coaxial Cable Connector In Series RF Coaxial Adaptors

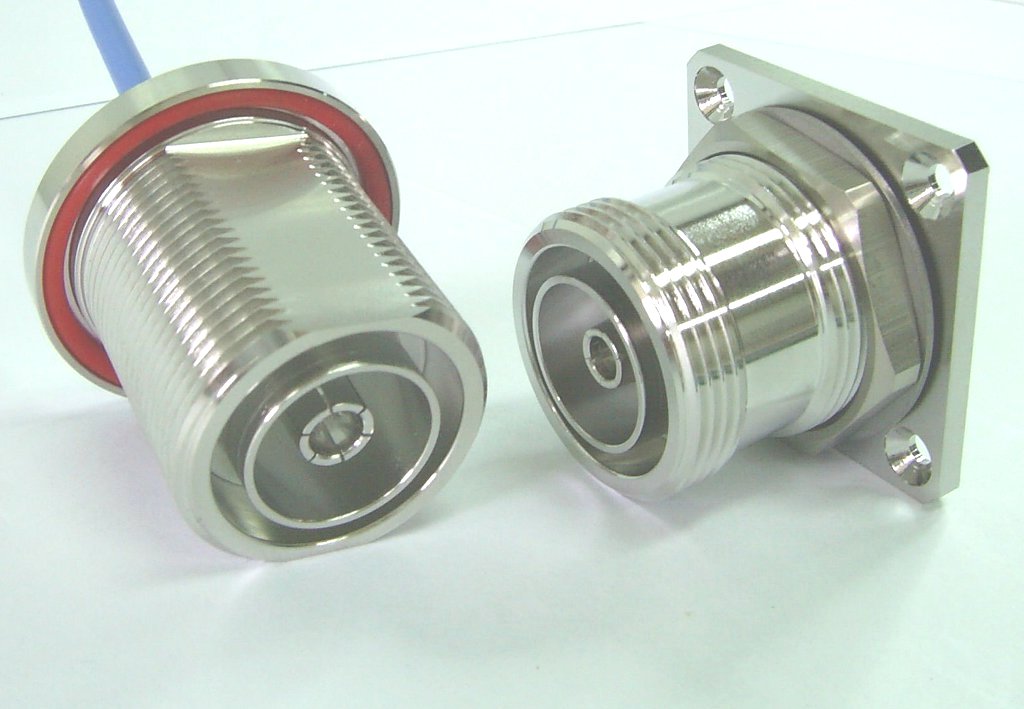

These are mechanically very rugged coaxial connectors with screw lock. They have a characteristic impedance of 50 , applicable with excellent electrical properties up to 7.5 GHz. 7/16 Connectors RF DIN type are designed for the transmission of medium to high power in transmitting stations and low loss transmission of received signals such as in mobile phone base stations are typical applications. Low intermodulation products and water-proof types are also available.

Ref. Product : RF Bias Tee DIN 7/16 type

                     RF DC Block DIN 7/16 Type

 7/16 DIN type Connectors RF coaxial type

7/16 DIN type Connectors RF coaxial plug type

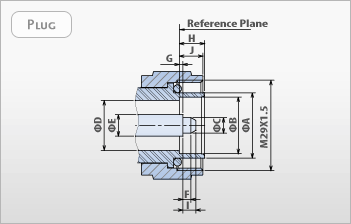

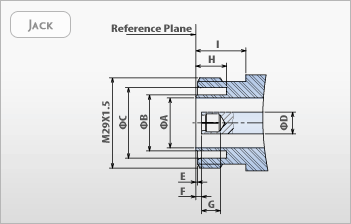

7/16 DIN Type Connectors RF Coaxial - Plug Interface 7/16 DIN Type Connectors RF Coaxial - Jack Interface
  Min..(mm) Max.(mm)

A 20.60 21.40
B 18.03 18.21
C 4.96 5.04
D 15.85 16.25
E 7.00 Nom.
F 1.40 1.60
G 1.47 1.77
H 7.00 8.00
I - 4.50
J 7.00 9.00

  Min..(mm) Max.(mm)

A 15.85 16.25
B - 18.00
C 22.10 22.90
D 7.00 Nom.
E 0.50 0.70
F 1.77 2.07
G 5.00 -
H 8.10 -
I 10.00 -

Material Electrical
Requirements Specifications

Body Brass 3Mat'l Plated,
Silver Plated
Coupling Nut Brass Nickelckel Plated
Center Contacts Brass or
Beryllium
Copper,
Spring Bronze 		Silver Plated
Insulator PTFE Teflon
Gasket Silicon Rubber

Requirements Specifications

Normal
Impedance		 50§Ù
VSWR Straight DC~4§× Max.1.20
Right Angle DC~4§× Max. 1.30
Insertion Loss 0.08× f : Frequency(§×)
Insulation
Resistance		 DC 500V 10,000§Û Min..
Contact
Resistance		 Inner Conductor : 5.0m§Ù Max.,
Outer Conductor : 10m§Ù Max.

Mechanical Environmental
Requirements Specifications

Coupling Nut
Retention Force		 102.2Kgf Min..
Coupling Nut
Mating Force		 Proof Torque:350Kgf.Cm Min..,
Recommended Mating Torque:
250~300Kgf. Cm
Center Force Engage :3.5Kgf Max.,
Disengage : 0.4Kgf Min..
Connector
Durability		 500 Cycles MIL-C-39012

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)		 MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)		 MIL-STD-202, Method 103B,
Test Condition B
