PLSB RF Coaxial Cable Connectors Home > Product > RF coaxial connectors > PLSB RF Connectors
PLSB RF Coaxial Semi-rigid  Cable Connectors B/F and PCB Connectors

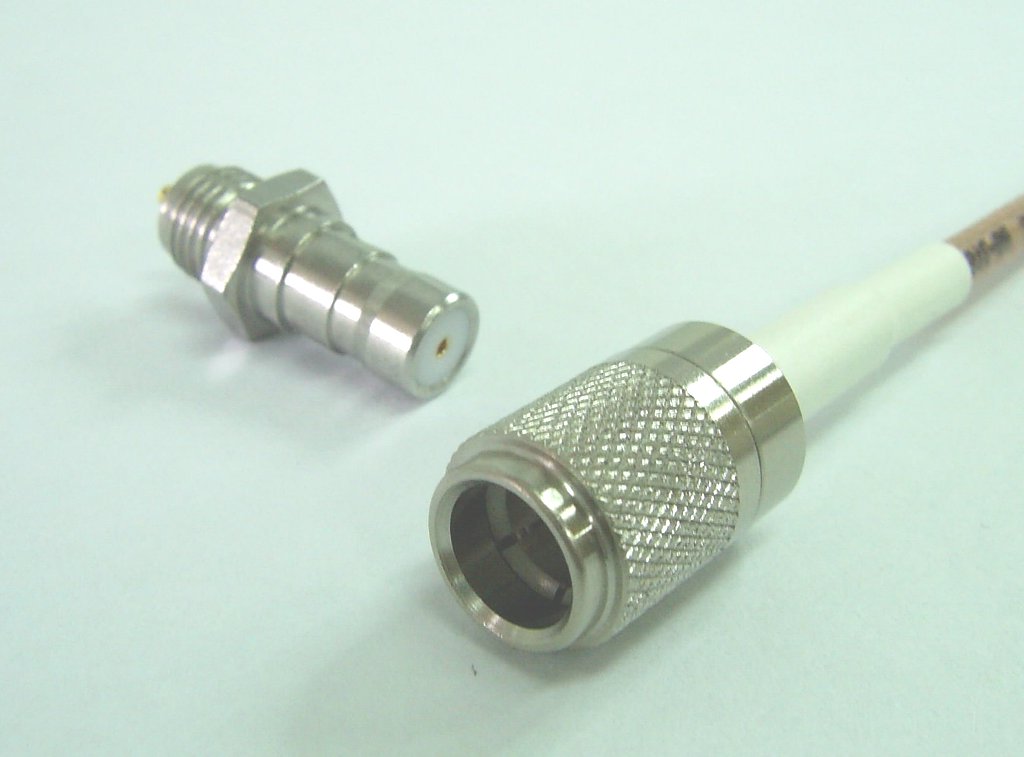

PLSB rf connectors are designed for applications up to 6 GHz, as required by today's and tomorrow's radio base stations. The interface is based on the SMB(SubMiniature Version B) dimension. The PLSB rf connectors offers an easier, faster and saver coupling operation. The plug connector is strong in the chape in the closed entry structure. PLSB RF Connectors-coaxial

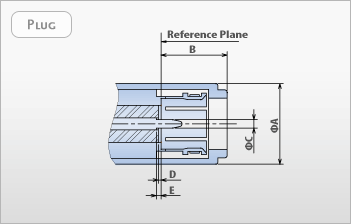

PLSB RF Coaxial Connector - Plug Interface PLSB RF Coaxial Connector - Jack Interface
  Min.(mm) Max.(mm)

A - 6.5
B - -
C 0.48 0.53
D 0.00 0.25
E 0.00 0.25

  Min.(mm) Max.(mm)

A - 4.05
B - -
C 0.95 Nom.
D 0.00 0.25
E 0.00 0.25

Material Electrical
Requirements Specifications

Body Brass or Stainless Steel (STS303) Au Plated, Nickelckel Plated
Housing Brass Nickelckel Plated
Center Contacts Brass or
Beryllium
Copper
Au Plated
Insulator PTFE Teflon
Gasket Silicon Rubber

Requirements Specifications

Normal
Impedance
50
VSWR Straight DC~6 Max. 1.35,
Right Angle DC~3 Max. 1.3
Insertion Loss 0.1× f : Frequency()
Insulation
Resistance
DC 500V 1,000 Min.
Contact
Resistance
Inner Conductor : 6m Max.,
Outer Conductor : 1m Max.

Mechanical Environmental
Requirements Specifications

Outer Force Engage : 0.8Kgf Min.,
Disengage : 5.0 Kgf Max..
Center Force Engage :1.35Kgf Max.,
Disengage : 0.03Kgf Min.
Connector
Durability
300 Cycles

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)
MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)
MIL-STD-202, Method 103B,
Test Condition B
