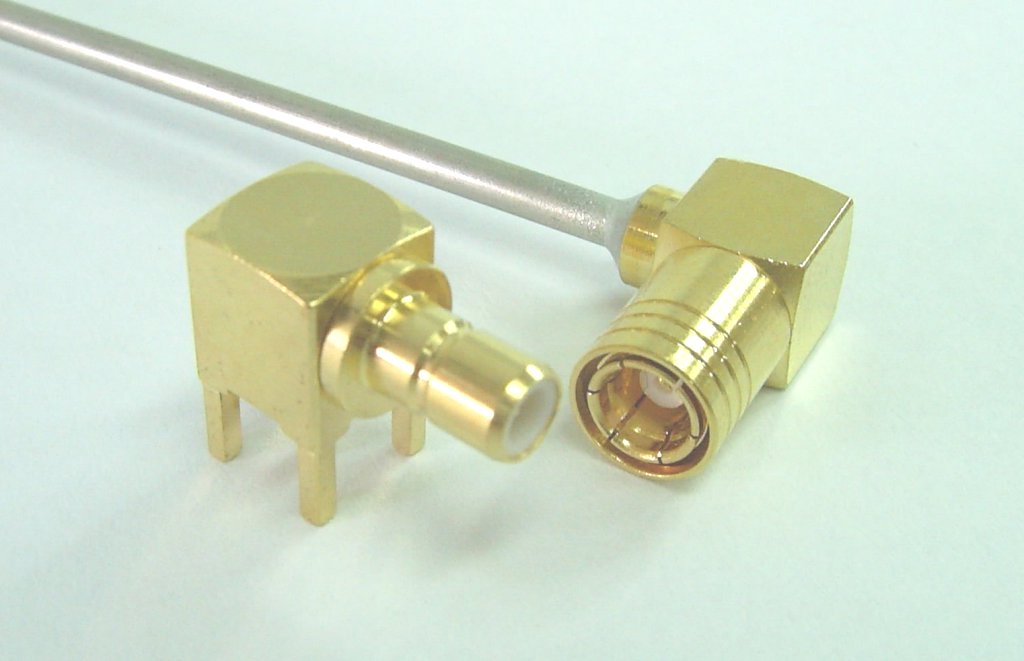

RF Connectors MMEX Coaxial line is a family of products designed as the next generation 50ohm micro Miniature surface mount coaxial interconnection system. Providing a more robust interface for greater versatility, this series is ideal for high volume wireless SMT or PCMCIA application in cellular base station, cellular phone, personal communication, global positioning system (GPS) and wireless LAN application.
Application : Antenna, Broad band Communication, Cellular Phone, GPS, Instrumentation, Radio Board, RF Test port, Satellite Reception TerMin.al, Telecom, Wireless Application, Wireless LAN
MMEX RF Connectors
Material Electrical
Requirements Specifications

Body Brass Au Plated
Center Contacts Brass or
Beryllium
Copper
Au Plated
Insulator PTFE Teflon

Requirements Specifications

Normal
Impedance
50
VSWR Straight
DC~6
Max.1.30
Right Angle
DC~4
Max.1.30
Insertion Loss 0.07× f : Frequency()
Insulation
Resistance
DC 500V 3,000 Min.
Contact
Resistance
Inner Conductor : 5.0m Max.,
Outer Conductor : 2.5m Max.

Mechanical Environmental
Requirements Specifications

Outer Force Engage:2.2Kgf Max.
Disengage:0.6~2.2Kgf
Center Force Engage :0.9Kgf Max.,
Disengage : 0.03Kgf Min.
Connector
Durability
500 Cycles MIL-C-39012

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)
MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)
MIL-STD-202, Method 103B,
Test Condition B
