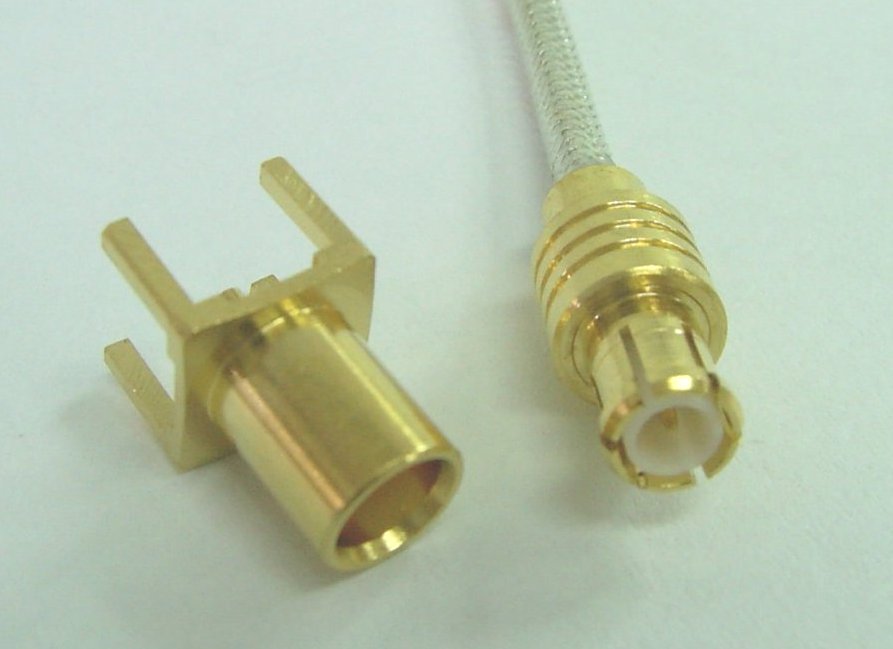

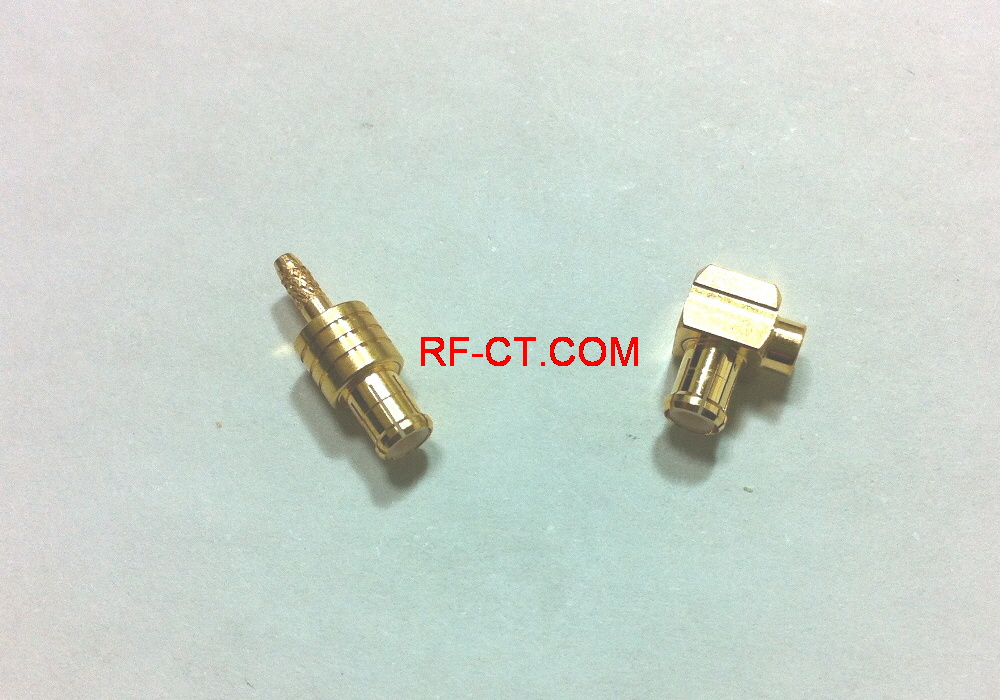

| MCX Connectors RF Miniature snap-on
Connectors offer you an excellent blend of size, weight, durability and performance for applications such as GPS, wireless communication and Test & Measurement. MCX connectors show an essential space reduction of 30% when compared with the SMB series. MCX connectors rf
can be used in applications up to 3 GHz. MCX connectors are sure to fit most applications where space, weight, size, performance and ease of assembly are required. |
|
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
| |

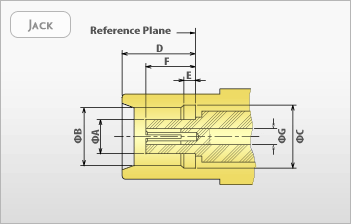

| A |
2.00 |
2.07 |
| B |
3.72 |
3.80 |
| C |
0.48 |
0.53 |
| D |
- |
0.30 |
| E |
2.80 |
3.20 |
| F |
4.15 |
- |
| G |
0.95 Nom. |
|
|
 |
 |
 |
|
|
|
|
|
| |

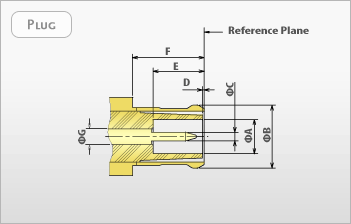

| A |
1.80 |
1.98 |
| B |
3.42 |
3.48 |
| C |
3.65 Nom. |
| D |
4.00 |
4.12 |
| E |
0.75 |
0.85 |
| F |
2.60 |
2.80 |
| G |
0.95 Nom. |
|
|
|
|
|
|
|
|
|
|
|
|
| Material |
|
Electrical |
|
| Requirements |
Specifications |
|
|
| |
| Body |
Brass,
Beryllium
Copper |
Au Plated |
| Center Contacts |
Brass or
Beryllium
Copper |
Au Plated |
| Insulator |
PTFE Teflon |
|
|
|
|
|
|
|
|
| Requirements |
Specifications |
|
|
| |
Normal
Impedance |
50§Ù |
| VSWR |
Straight DC~6§×
Max. 1.30 |
Right Angle
DC~3§× Max. 1.30 |
| Insertion Loss |
0.07× f : Frequency(§×) |
Insulation
Resistance |
DC 500V 10,000§Û Min. |
Contact
Resistance |
Inner Conductor : 5.0m§Ù Max.
Outer Conductor : 1m§Ù Max. |
|
|
|
|
|
|
|
|
|
| Mechanical |
|
Environmental |
|
| Requirements |
Specifications |
|
|
| |
| Outer Force |
Engage : 2.54Kgf Max.,
Disengage : 0.82~2.04Kgf |
| Center Force |
Engage : 0.9Kgf Max.,
Disengage : 0.03Kgf Min. |
Connector
Durability |
500 Cycles MIL-C-39012 |
|
|
|
|
|
|
|
|
| Requirements |
Specifications |
|
|
| |
| Vibration |
MIL-STD-202, Method 204 |
| Thermal Shock |
MIL-STD-202, Method 107D,
Test Condition B |
Corrosion
(Salt Spray) |
MIL-STD-202, Method 101D,
Test Condition B |
Humidity
(Steady State) |
MIL-STD-202, Method 103B,
Test Condition B |
|
|
|
|
|
|
|
|
|
