SMA(SubMiniature version A) Connectors Home > Product > RF coaxial connectors > SMA Connectors RF
SMA(SubMiniature version A) Cable Connectors Panel & Bulkhead connectors PCB Board Connectors In-series Adapters
SMA(SubMiniature version A) Semi-rigid Cable ConnectorSMA(SubMiniature version A) flexible Cable Connector
sma connectors rf coaxial for semi rigid cable Asma connectors rf coaxial for semi rigid cable B
SMA Connectors RF - Straight Cable Plug Connector
SMA Connectors RF Straight Cable Plug , Direct Solder Type
P/N Cable Group Plate
(Body / C/N) 		Remark

R03S237001 RG-402/U(.141") Au/Passivation Without, a=9.8
R03S237011 RG-402/U(.141") Au/Passivation a=11.1
R03S235001 RG-405/U(.085") Au/Passivation a=11.1
R03S232001 .047" Au/Passivation a=11.1

SMA Connectors RF - Straight Cable Plug Connector
SMA Connectors RF Straight Cable Plug , Direct Solder Type
P/N Cable Group Plate
(Body / C/N) 		Remark

R03S237061 RG-402/U(.141") Ni / Passivation
R03S237075 RG-402/U(.141") 3Mat'l / Passivation


SMA Connectors RF - Right Angle Plug Connector
SMA Connectors RF Right Angle Plug, Direct Solder Type
P/N Cable Group Plate
(Body / C/N) 		Remark

R03R237001 RG-402/U(.141") Au/Passivation
R03R235001 RG-405/U(.085") Au/Passivation

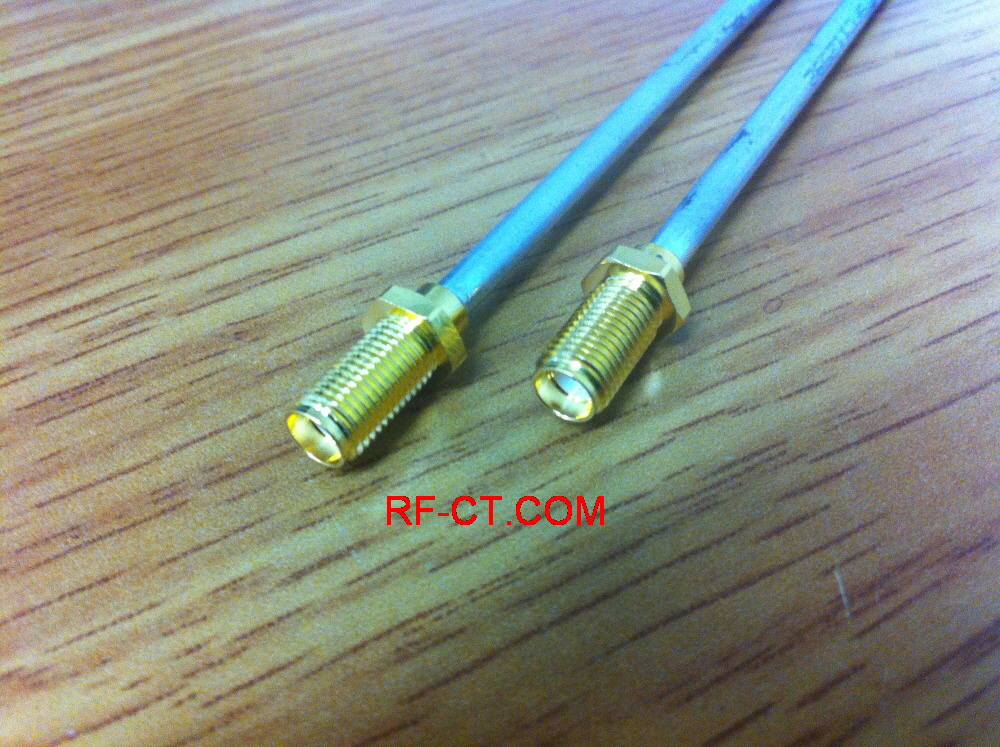

SMA Connectors RF - Straight Cable Jack Connector
SMA Connectors RF Straight Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03S137001 RG-402/U(.141") Au
R03S137005 RG-402/U(.141") 3Mat'l
R03S135001 RG-405/U(.085") Au
R03S132001 .047" Au


SMA Connectors RF - Bulkhead Cable Jack Connector
SMA Connectors RF Bulkhead Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03B137001 RG-402/U(.141") Au STS
R03B135001 RG-405/U(.085") Au STS
R03B132001 .047" Au STS


SMA Connectors RF - B/H Jack, Directr Solder Type
SMA Connectors RF Bulkhead Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03B137041 RG-402/U(.141") Au
R03B135041 RG-405/U(.085") Au


SMA Connectors RF - Bulkhead Cable Jack Connector
SMA Connectors RF Bulkhead Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03B137051 RG-402/U(.141") Au STS
R03B135051 RG-405/U(.085") Au STS


SMA Connectors RF - 2 Holes Flange Cable Jack
SMA Connectors RF 2hole Flange Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03H137001 RG-402/U(.141") Au STS , a=14.2
R03H135001 RG-405/U(.085") Au STS , a=12.7
R03H135051 RG-405/U(.085") Au a=12.7
R03H135056 RG-405/U(.085") NI a=12.7


SMA Connectors RF - 4 Holes Flange Cable Jack
SMA Connectors RF 4hole Flange Cable Jack, Direct Solder Type
P/N Cable Group Plate Remark

R03H337001 RG-402/U(.141") Au STS , a=14.2
R03H335001 RG-405/U(.085") Au STS , a=12.7
R03H335051 RG-405/U(.085") Au a=12.7
R03H335056 RG-405/U(.085") Ni a=12.7
